Radiation portal monitors
for vehicle control


Radiation portal monitors (RPMs) are specialised systems used to monitor and detect radioactivity and nuclear materials. They are installed at strategic access points to prevent the passage of contaminated loads or unauthorised radioactive sources.



PoliGate™: portal monitors for trucks and cars

The PoliGate™ series of portal monitors are designed for the inspection of trucks and other vehicles, housed in a robust and easy-to-install structure.

PoliGate™ monitors are simple to operate and maintain, require minimal training, and are supplied with user-friendly software that provides real-time data, alarm notifications and basic diagnostics.

The PoliGate™ radiation portal monitors comply with the requirements for monitoring radioactive sources in foundries and steel plants, as specified in Royal Decree 451/2020 of 10 March on the control and recovery of orphan radioactive sources.

The system is modular and available in three models to suit different monitoring configurations:

  • PoliGate™ LG1 radiation portal monitor with two pillars (each with two 8,800 cm3 PVT scintillation detector modules); monitoring area: 1.5 m × 2 m.
  • PoliGate™ LG2 radiation portal monitor with two pillars (each with four 8,800 cm3 PVT scintillation detector modules); monitoring area: 6 m × 2 m.
  • PoliGate™ LG4 radiation portal monitor with two pillars (each with four 8,800 cm3 PVT scintillation detector modules); monitoring area: 6 m × 4.5 m.

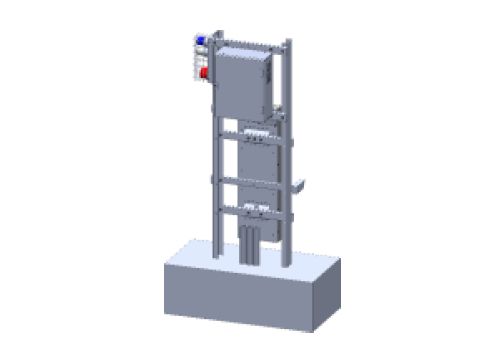

PoliGate LG1 radiation portal for vehicles

PoliGate™ LG1 radiation portal monitor with one detector per pillar

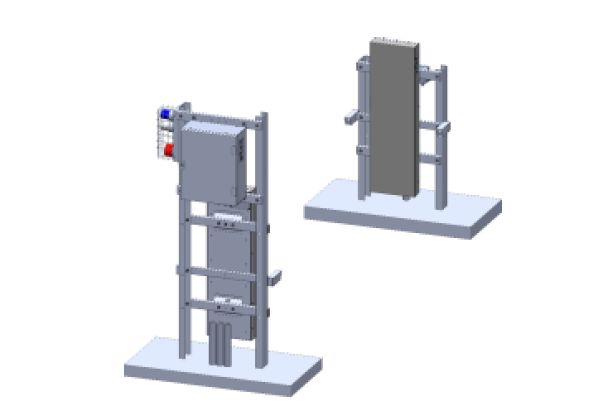

PoliGate LG2 radiation portal for trucks

PoliGate™ LG2 radiation portal monitor with two detectors in two pillars

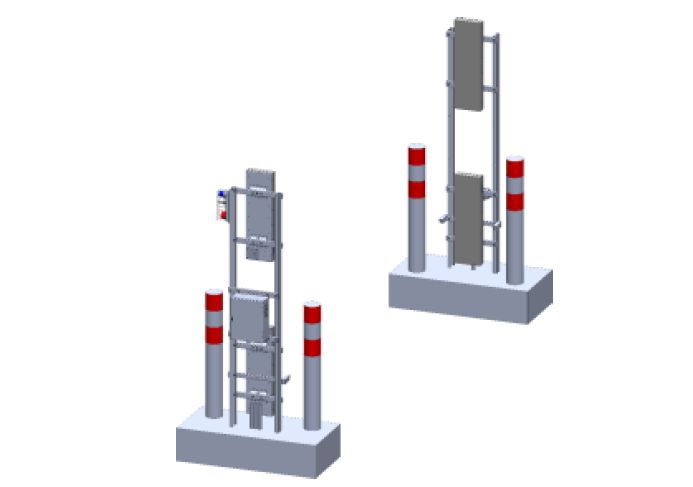

PoliGate LG4 large-area radiation portal

PoliGate™ LG4 radiation portal monitor with two detectors in two pillars

Information and quotations

PoliGate™ Deployable: portable radiation detection system

PM5000C-05M deployable radiation portal monitor

The PoliGate™ Deployable is a high-sensitivity gamma radiation monitor composed of two transportable pillars packed in three sealed transport cases. It is designed for the rapid screening of pedestrians and vehicles for radioactive materials, without the need for a permanent installation.

The system is intended for mobile or temporary checkpoints, emergency situations and events where flexible radiation monitoring is required.

The monitor can operate from an external power supply or from an internal battery with an operating time of up to 8 hours.

PM5000C-05M deployable radiation portal in transport cases

PM5000C-05M deployable radiation portal in operation
